CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.

Chipset

Intel® B760 Express Chipset

Memory

Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)

Expansion Slots

CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Storage

CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for SATA storage devices

Ethernet + Wireless Communication module

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)

USB

Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

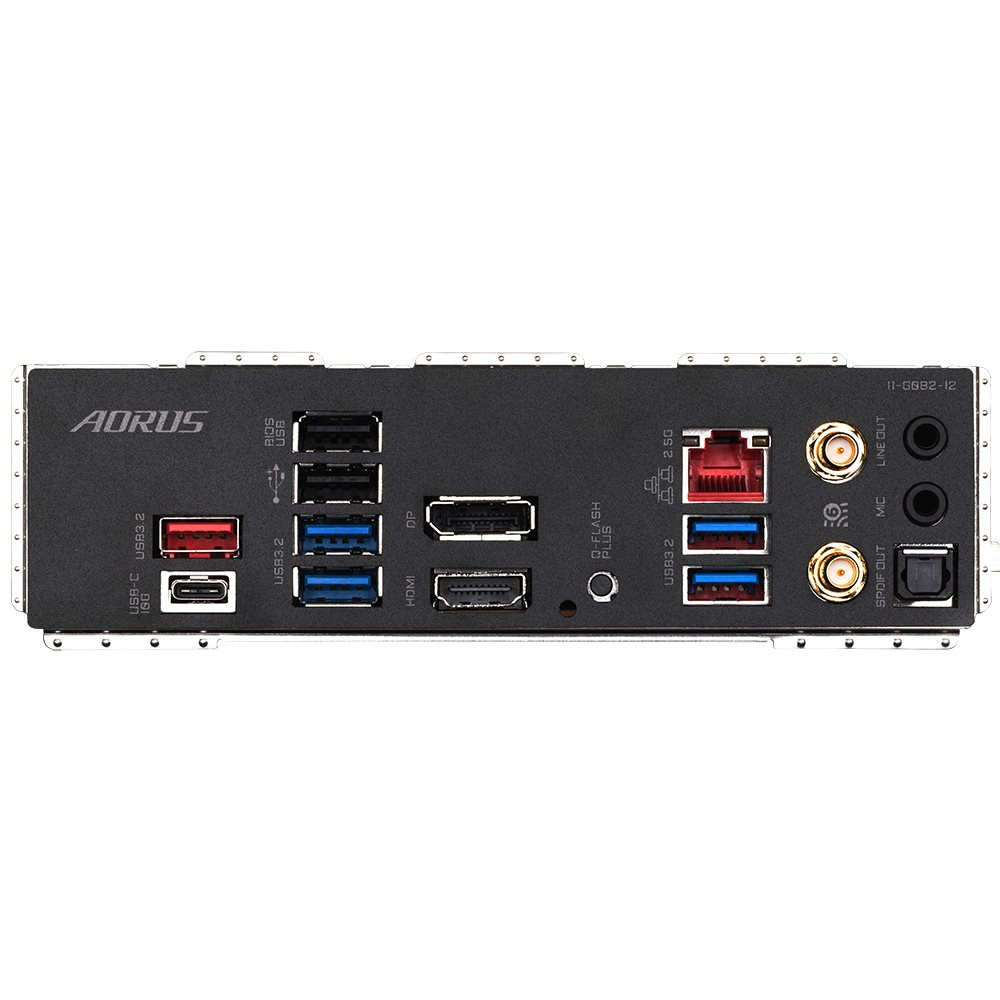

Back Panel I/O Ports

1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacks

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus

AccessoriesBundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm
