MSI MB Sc LGA1700 PRO H610M-G, Intel H610, 2xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX
MSI MB Sc LGA1700 PRO H610M-G, Intel H610, 2xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX

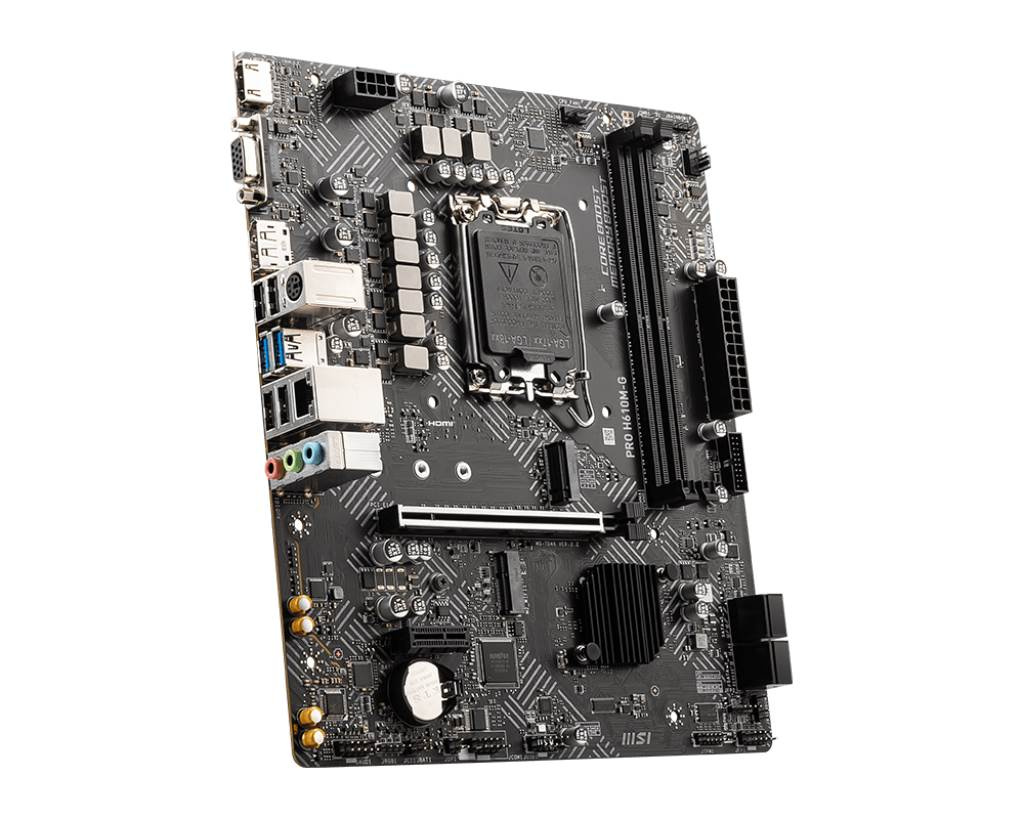

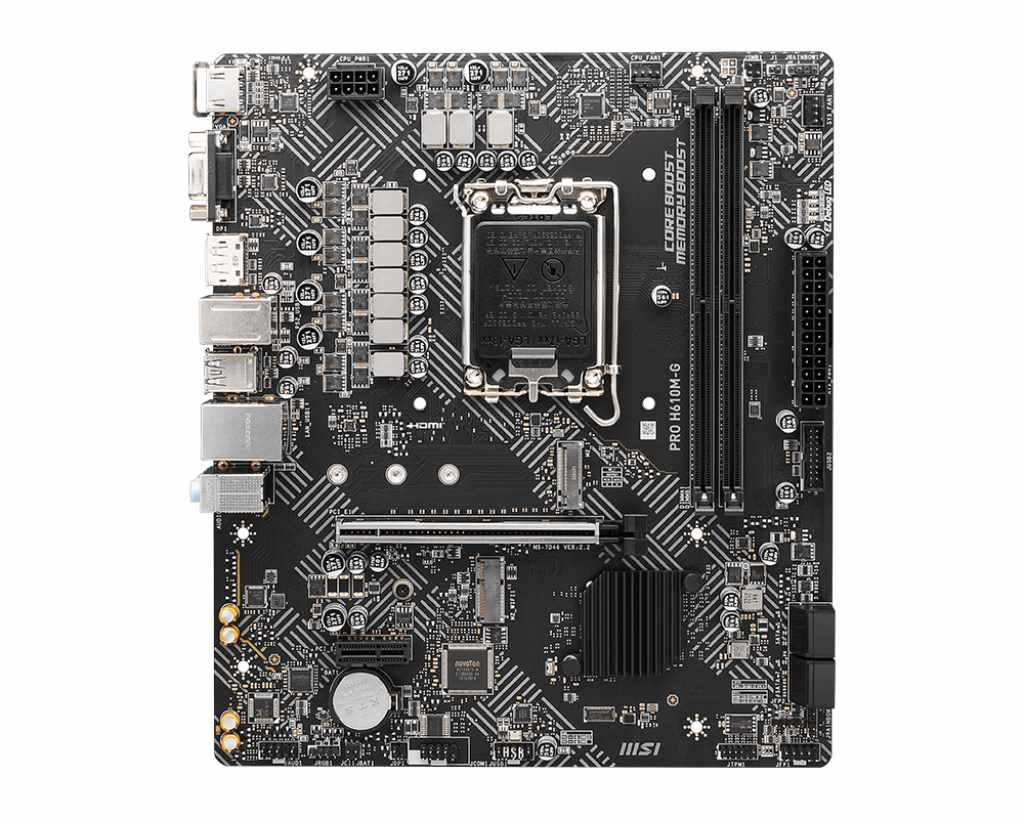

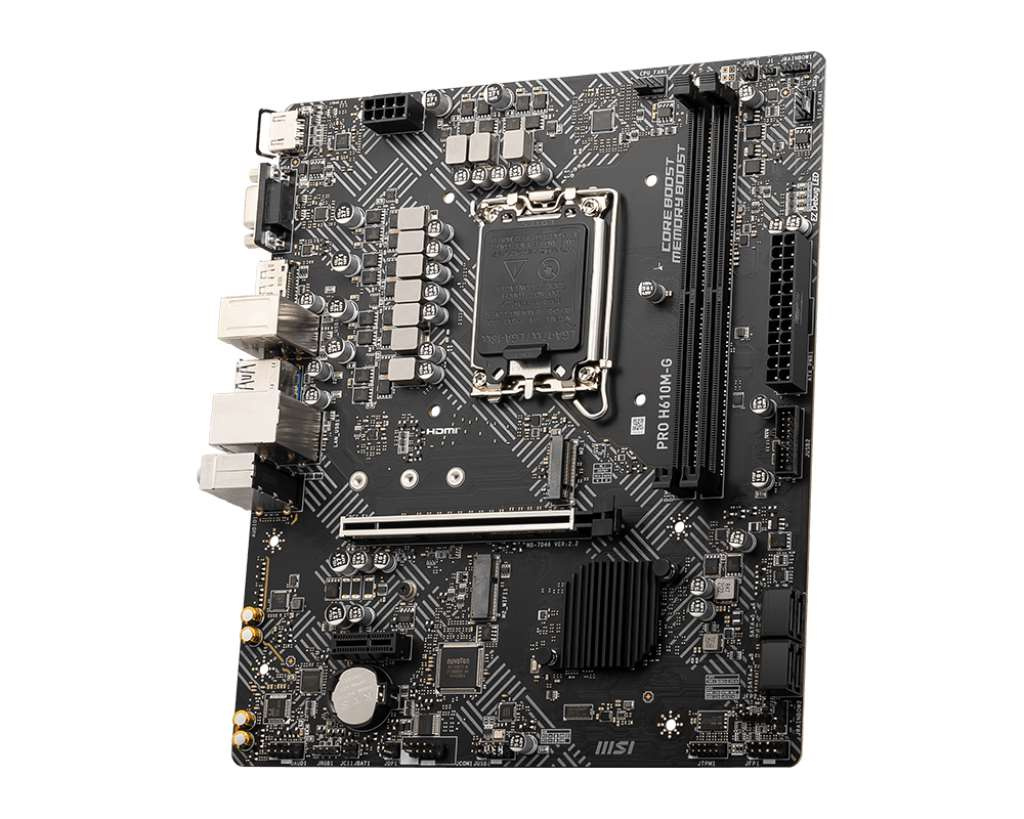

MSI PRO H610M-G
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
LGA 1700
Chipset
INTEL H610
Memory
2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
Intel® I219V 1Gbps LAN controller
Expansion Slots
1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
1x M.2 slot with E-key for PCIe WiFi module only
Storage Interface
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
USB
4x USB 2.0 (Rear)
2x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
INTERNAL I/O
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable RGB LED connector(JRAINBOW)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports

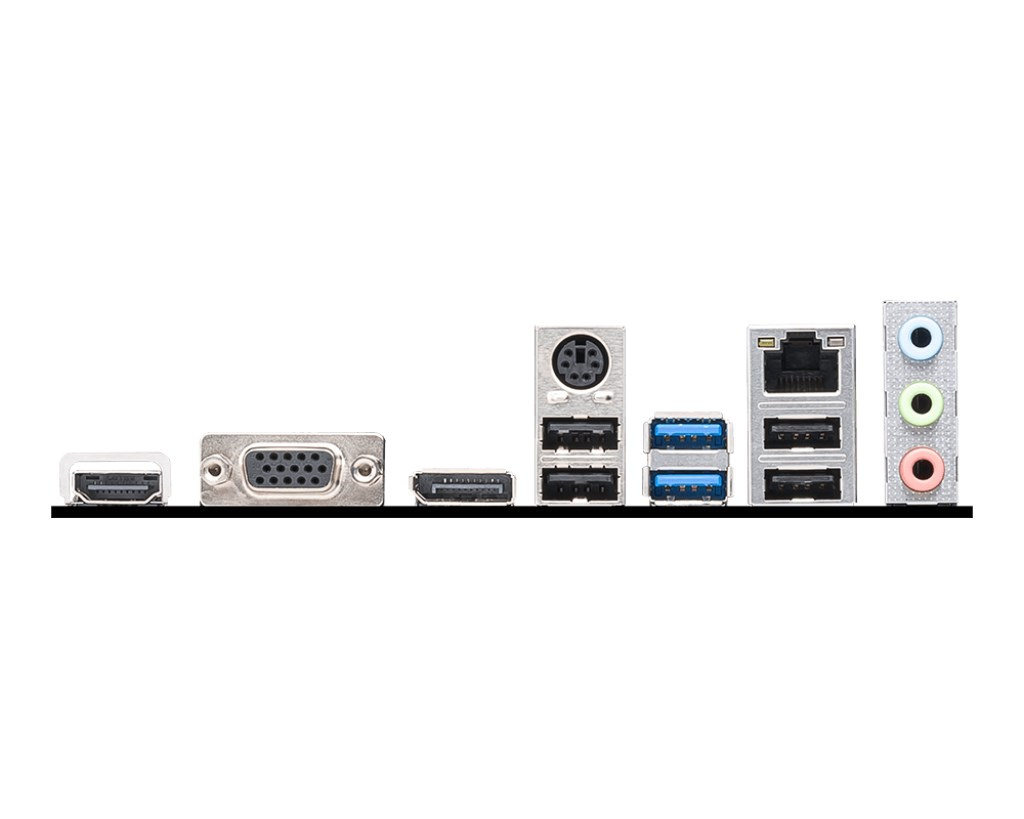

Back Panel Connectors
1x HDMI™
1x VGA
1x DisplayPort
1x Keyboard / Mouse
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x LAN port
3x Audio Connectors
4x USB 2.0
LED FEATURE
4x EZ Debug LED
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
mATX
211mmx243.84mm
