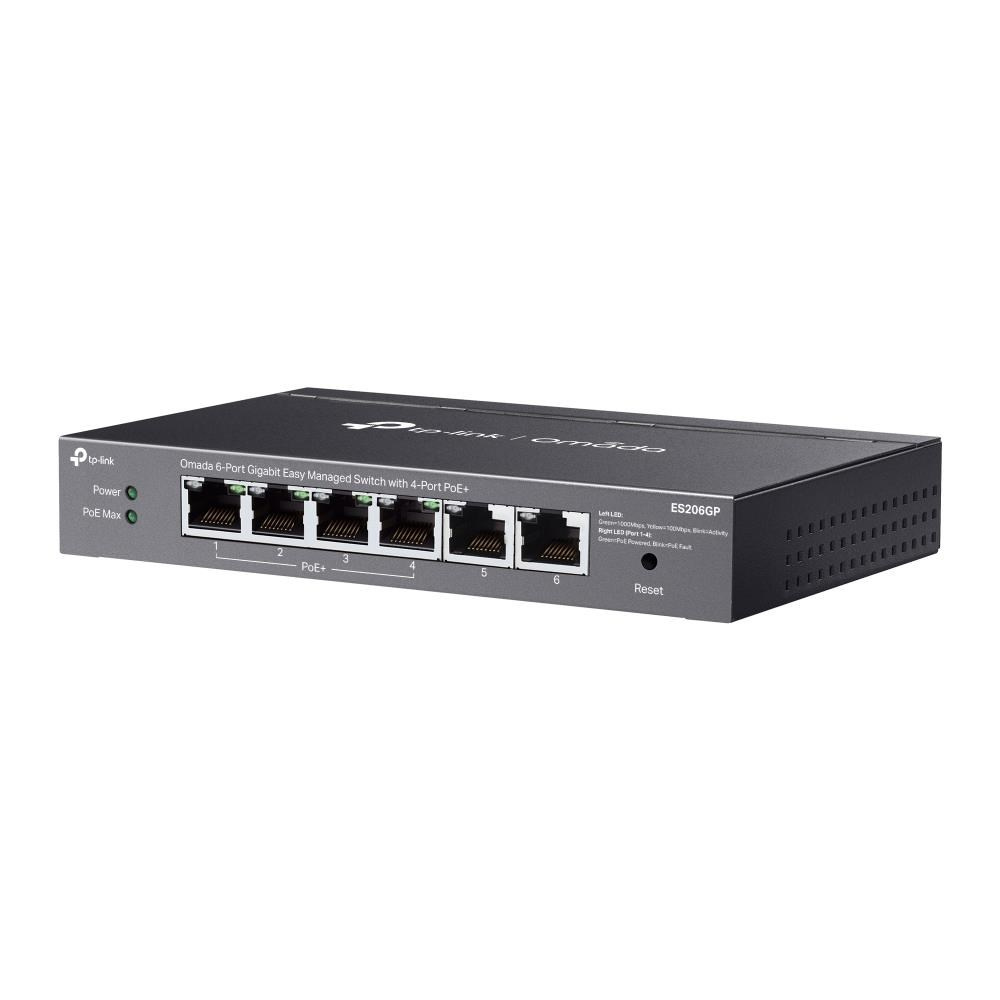

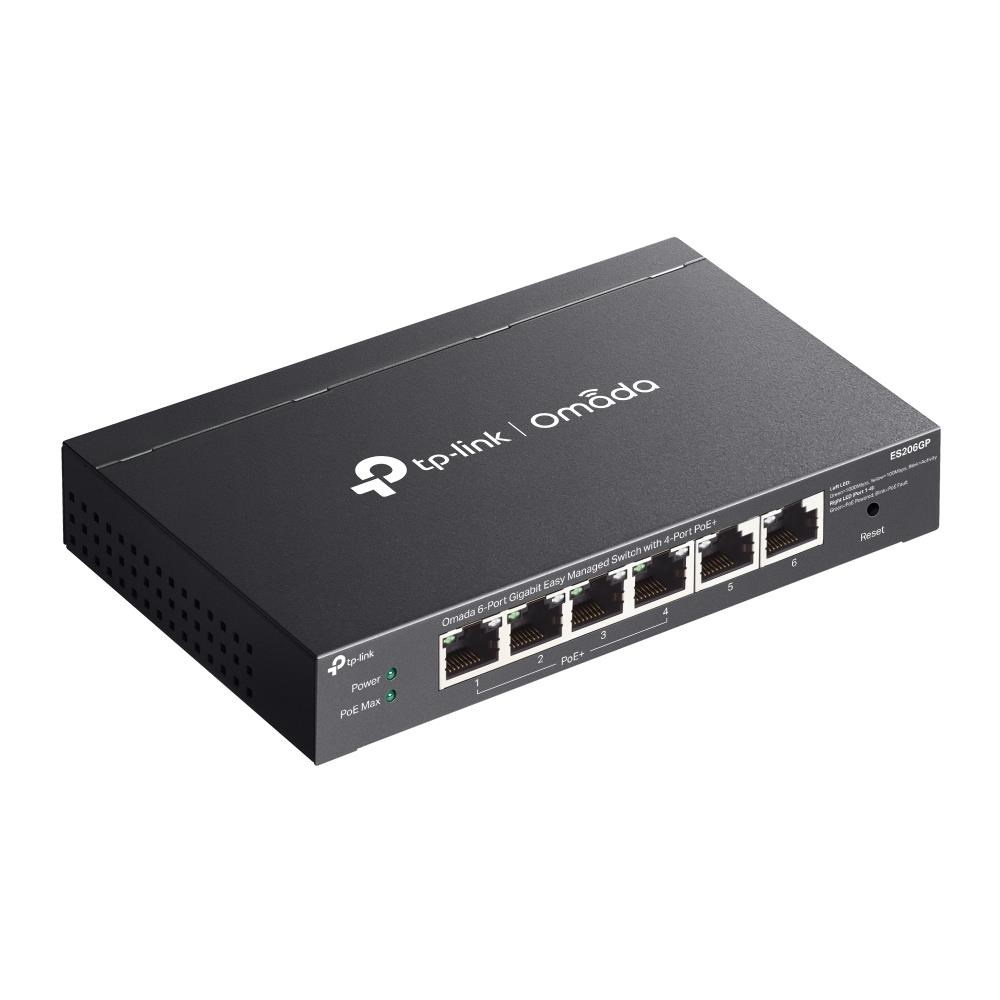

TP-Link OMADA switch ES206GP (6xGbE,4xPoE+,65W, fanless)
Popis a parametre
TP-Link OMADA switch ES206GP (6xGbE,4xPoE+,65W, fanless)
TP-Link OMADA switch ES206GP
Omada 6portový gigabitový Easy Managed Switch se 4 porty PoE+
- 6× 10/100/1000Mb/s RJ45 portů (4× PoE+ s podporou standardu 802.3at/af)
- Napájecí rozpočet 65W, až 30W pro každý PoE port
- Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí
- Centrální správa přes cloud prostřednictvím webu nebo aplikace Omada
- Až 250 m PoE, QoS, automatické obnovení PoE‡ a izolace portů pro spolehlivou síťovou infrastrukturu pro dohled
- Automatická prevence smyček, VLAN a IGMP Snooping
- Bezhlučný provoz díky bezventilátorovému designu
- Odolné kovové pouzdro a design pro umístění na stůl nebo montáž na stěnu
Learn more about TP-Link PoE technology >
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-easy-managed/es206gp/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | •65× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE) • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |

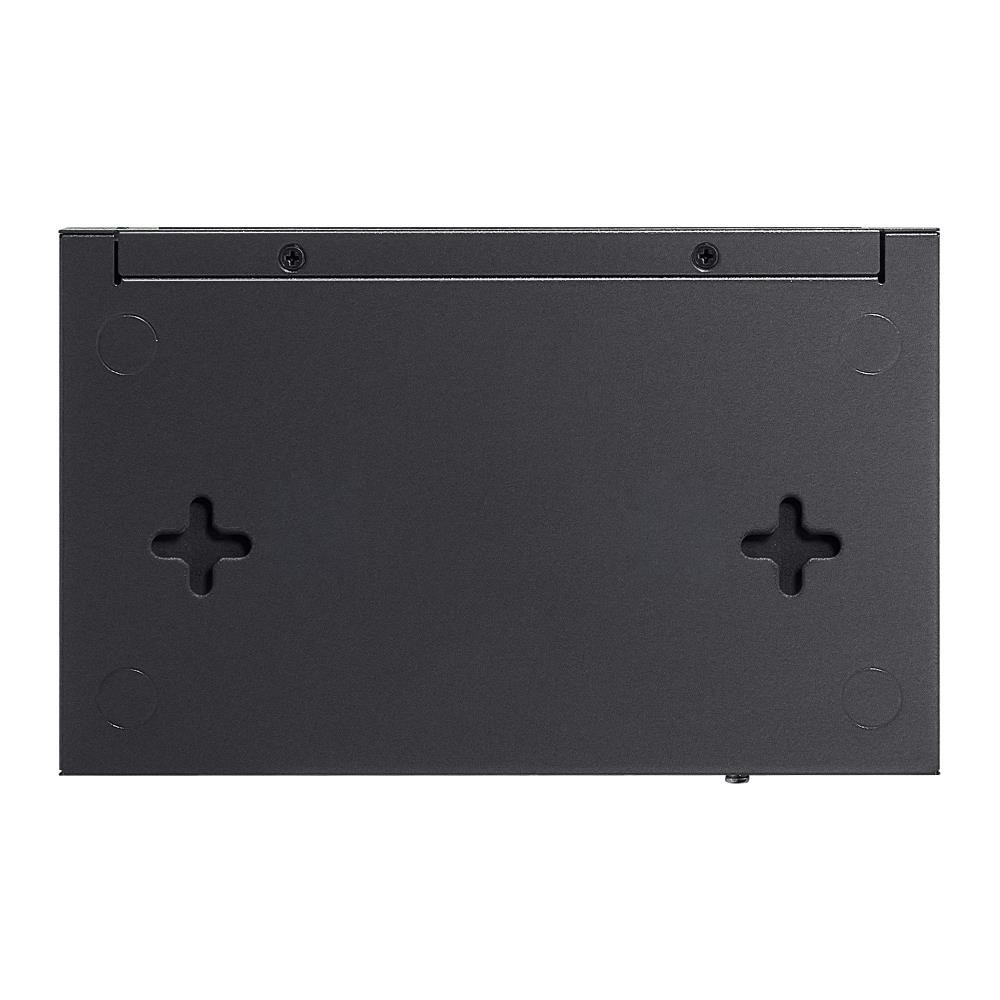

| Installation | • Desktop • Wall Mount |
| Physical Security Lock | ? |

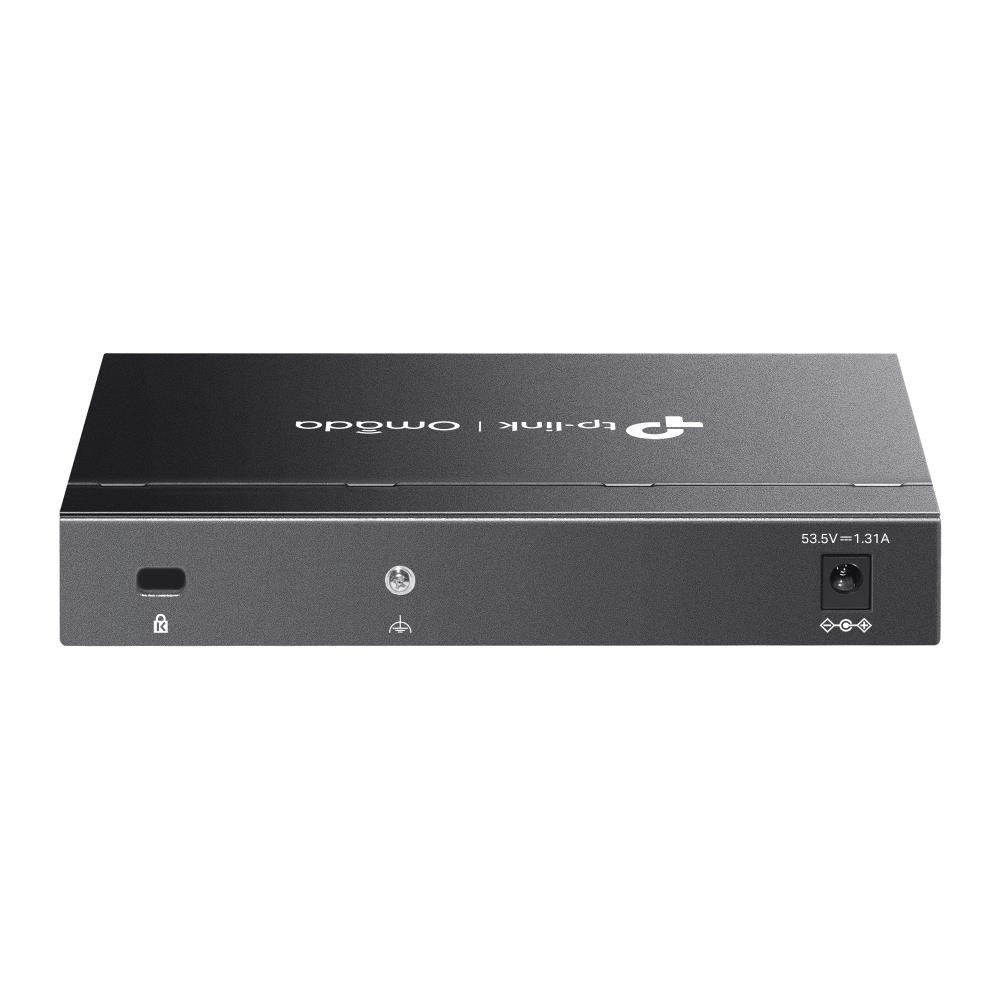

| Power Supply | DC Power Adapter (Output: 53.5 VDC/ 1.31 A) |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 4 ports • PoE Budget: 65 W available for all PoE+ ports, 30W max per port • PoE Auto Recovery • Up to 250m PoE transmission distance** |
| Dimensions ( W x D x H ) | 6.2×4.0×1.0 in (158×101×25 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| MANAGEMENT | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | • ES206GP • Power Adapter • Power Cord • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0?~40? (32?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
ParametrePridať do porovnania
Provedení
Desktop
Technologie
Gigabit Ethernet 1000Mbps
Management
Web
Funkce
PoE (Power over ethernet)
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
DHCP snooping
Funkce
L2
Funkce
Web management/Smart switch
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Ventilátor
Ne
Počet portů LAN
6
Maximální počet portů
6
PoE budget (W)
65
Počet PoE+ portů
4
