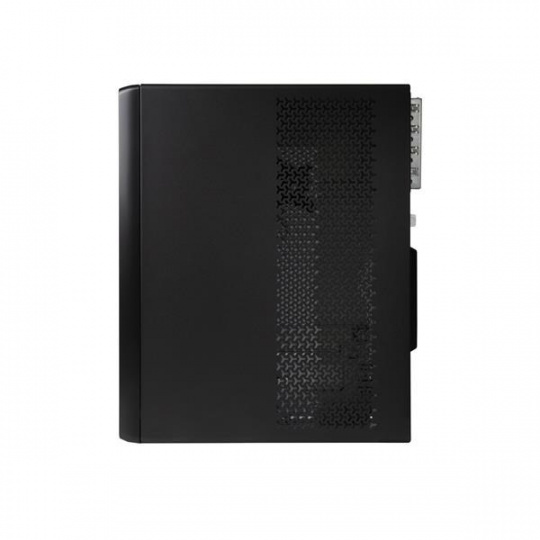

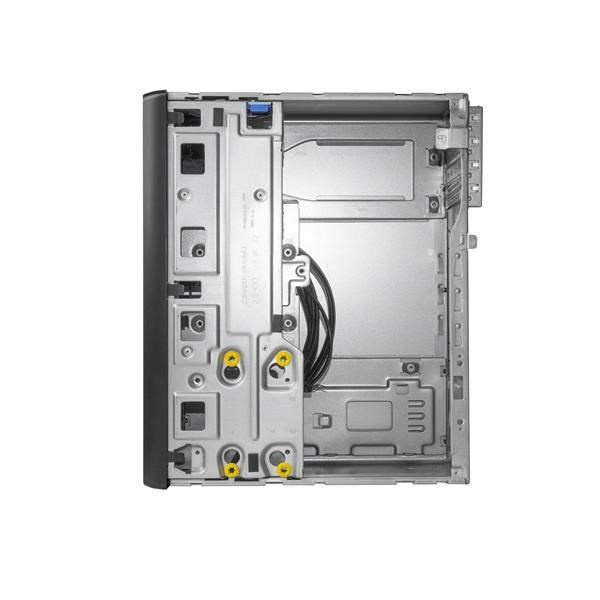

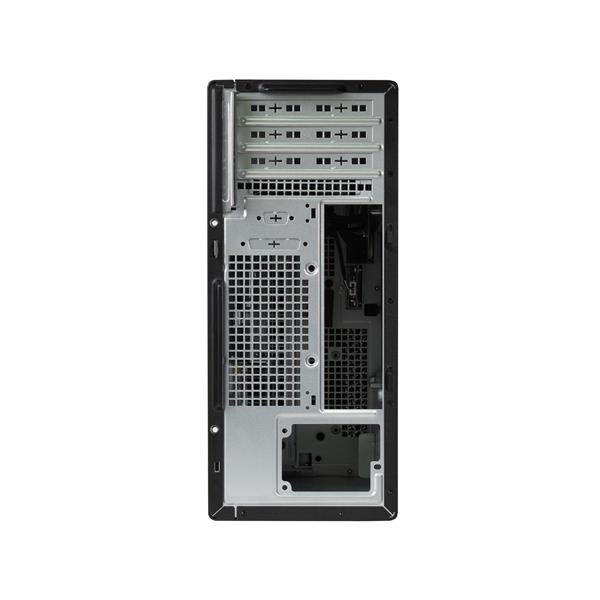

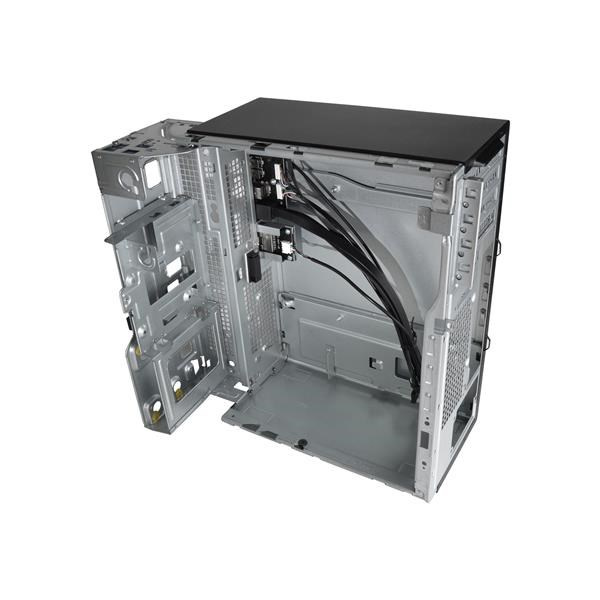

CHIEFTEC skříň Uni Series / Minitower, BS-10B, zdroj GPF-300P (300W), Black
Popis a parametre
CHIEFTEC skříň Uni Series / Minitower, BS-10B, zdroj GPF-300P (300W), Black
BS-10B-300
- Elegant & Compact (Vertical/Horizontal) Desktop in matt-black finishing
- Easy-to-install owing to user-friendly pivot mechanism
- Offers USB Type C to front panel
- 80 PLUS Bronze Certificated 300W TFX (GPF-300P) Power Supply Included
TECHNICAL SPECIFICATIONS
| Article No. | GM-02B-OP |
| Color | Black |
| Material | 0.8mm SGCC |
| Motherboard support | Mini ITX, mATX (max. 244mm x 220mm) |
| Dimension (D x W x H) | 290mm x 145mm x 343mm (stand+2mm) |
| Weight (without/with package) | 4.48 kg / 5.38 kg |
| Drive bay external | 1x 5,25“ ultra slim ODD |
| Drive bay internal | 1 x 3.5” and 1 x 2.5” / 2 x 2.5” |

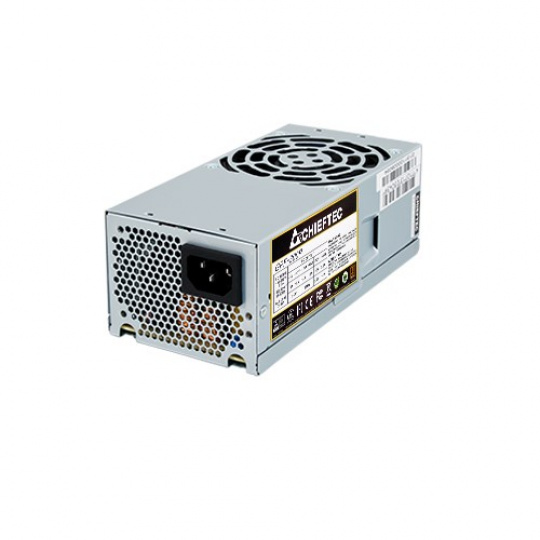

| Power supply | GPF-300P (TFX 300W) |

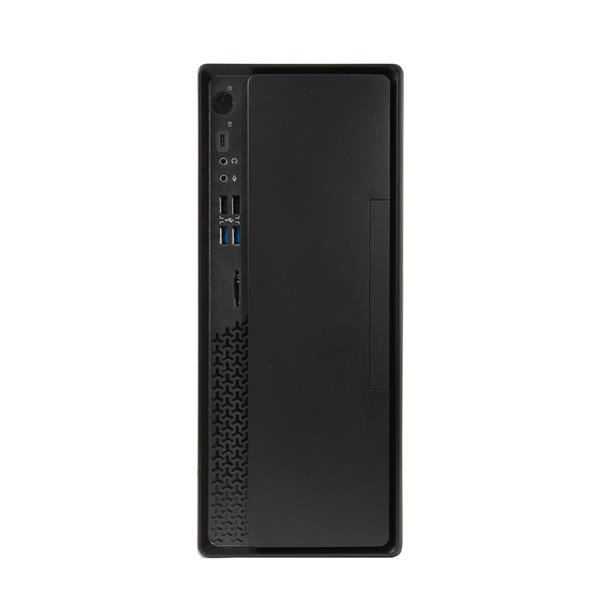

| Front I/O | 2x USB3.1 Gen 1, 2x USB2.0, Audio-out (AZALIA / HD-Audio), Mic-In, USB Type C (480Mbit/s), SD Card slot (Support SD/MMC/MS cards with data transfer rate up to 480Mbit/s) |
| Scope of delivery | Screw set, Hard disk decoupling for HDD/SSD |
| Expansion slots | 4 |
| Cooling Compatibility | Rear: 1x 80mm fan |
| CPU cooler height (max.) | 120mm |
| VGA card length (max.) | 250mm |
| Warranty | 24 months |
.
ParametrePridať do porovnania
Provedení skříně
Mini Tower / micro ATX
Barva skříně
Černá
Počet pozic 5.25"
1
Počet pozic 3.5" (HDD)
1
Počet pozic 2.5" (SSD)
1
Vybavení PC skříně
Přední Audio panel
Výkon zdroje (W)
300
CHIEFTEC skříň Uni Series / Minitower, BS-10B, zdroj GPF-300P (300W), Black
